Vacuum Pumps • E Series
Vacuum Pumps E08N
Nominal Flow m³/h: 10.0 • Nominal Flow CFM: 6.0 • Nominal Flow liters/min: 176 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1/4 • Rotation (RPM): 3400 • Approximate Weight (Kg): 12 • Measurements (LxWxH): 310 x 180 x 160 mm • Technical specifications may vary according to the type of engine and the accessories included in the assembly.
Vacuum Pumps E12
Nominal Flow m³/h: 13.5 • Nominal Flow CFM: 8.0 • Nominal Flow liters/min: 226 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Single pumping stage • Partial Pressure (torr): 1.10-2 • Pressure Total (torr): 5.10-2) • Water Vapor Admission Pressure (torr): 40 • Gas Ballast type valve to eliminate condensate from the lubricant • Standard inlet and outlet connections 1/2” NPT, configurable for NWKF 25 • Coupled motor directly to the pump • Motor Power (HP): 1/2 • Motor Power (W): 372 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM ): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 17 • Measurements (LxWxH): 460 x 180 x 280 mm • Technical specifications may vary according to the type of engine and the accessories included in the assembly.
Vacuum Pumps E18
Nominal Flow m³/h: 20.3 • Nominal Flow CFM: 12.0 • Nominal Flow liters/min: 340 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Single pumping stage • Partial Pressure (torr): 1.10-2 • Pressure Total (torr): 5.10-2) • Water Vapor Admission Pressure (torr): 40 • Gas Ballast type valve to eliminate condensate from the lubricant • Standard inlet and outlet connections 1/2” NPT, configurable for NWKF 25 • Coupled motor directly to the pump • Motor Power (HP): 1/2 • Motor Power (W): 372 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM ): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 20 • Measurements (LxWxH): 460 x 180 x 280 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.
Vacuum Pumps E20N
Nominal Flow m³/h: 22.0 • Nominal Flow CFM: 13.0 • Nominal Flow liters/min: 370 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1/2 • Rotation (RPM): 3500 • Approximate Weight (Kg): 20 • Measurements (LxWxH): 340 x 240 x 200 mm • Technical specifications may vary according to the type of engine and the accessories included in the assembly.
Vacuum Pumps E28
Nominal Flow m³/h: 30.5 • Nominal Flow CFM: 18.0 • Nominal Flow liters/min: 509 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Single pumping stage • Partial Pressure (torr): 1.10-2 • Pressure Total (torr): 5.10-2 • Water Vapor Admission Pressure (torr): 40 • Gas Ballast valve to eliminate condensate from the lubricant • Standard inlet and outlet connections 3/4” NPT, configurable for NWKF 25 • Directly coupled motor to the pump • Motor Power (HP): 1 • Motor Power (W): 745 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 37 • Measurements (LxWxH): 580 x 200 x 290 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.
Vacuum Pumps E30N
Nominal Flow m³/h: 33.0 • Nominal Flow CFM: 20.0 • Nominal Flow liters/min: 549 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1 • Rotation (RPM): 3500 • Approximate Weight (Kg): 27 • Measurements (LxWxH): 380 x 260 x 220 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E30
Nominal Flow m³/h: 33.0 • Nominal Flow CFM: 20.0 • Nominal Flow liters/min: 549 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1 • Rotation (RPM): 1750 • Approximate Weight (Kg): 27 • Measurements (LxWxH): 380 x 260 x 220 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E40N
Nominal Flow m³/h: 48.0 • Nominal Flow CFM: 29.0 • Nominal Flow liters/min: 790 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Engine Power (HP): 2 • Rotation (RPM): 1750 • Approximate Weight (Kg): 61 • Measurements (LxWxH): 520 x 285 x 255 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E45
Nominal Flow m³/h: 46.0 • Nominal Flow CFM: 28.0 • Nominal Flow liters/min: 786 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Single pumping stage • Partial Pressure (torr): 1.10-2 • Pressure Total (torr): 5.10-2 • Water Vapor Admission Pressure (torr): 40 • Gas Ballast valve to eliminate condensate from the lubricant • Standard inlet and outlet connections 3/4” NPT, configurable for NWKF 25 • Directly coupled motor to the pump • Motor Power (HP): 1.5 • Motor Power (W): 1118 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 39 • Measurements (LxWxH): 580 x 200 x 290 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.
Vacuum Pumps E80N
Nominal Flow m³/h: 81.0 • Nominal Flow CFM: 49.0 • Nominal Flow liters/min: 1384 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Motor Power (HP): 3 • Rotation (RPM): 1750 • Approximate Weight (Kg): 61 • Measurements (LxWxH): 700 x 450 x 420 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E80
Nominal Flow m³/h: 81.0 • Nominal Flow CFM: 49.0 • Nominal Flow liters/min: 1384 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Motor Power (HP): 3 • Rotation (RPM): 1750 • Approximate Weight (Kg): 61 • Measurements (LxWxH): 700 x 450 x 420 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.

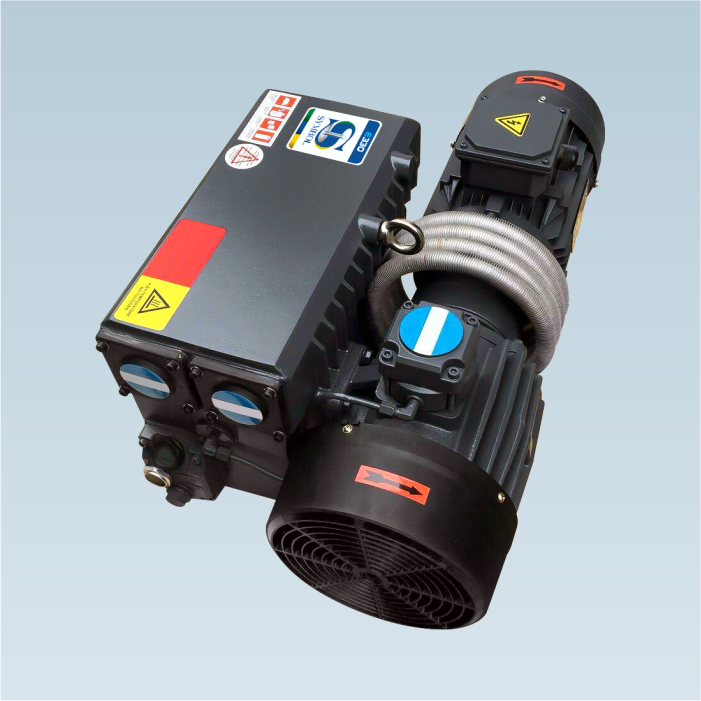

Vacuum Pumps E150
Nominal Flow m³/h: 153.0 • Nominal Flow CFM: 90.0 • Nominal Flow liters/min: 2550 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Engine Power (HP): 5 • Rotation (RPM): 1750 • Approximate Weight (Kg): 91 • Measurements (LxWxH): 760 x 470 x 450 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E300
Nominal Flow m³/h: 360.0 • Nominal Flow CFM: 211.0 • Nominal Flow liters/min: 6000 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Engine Power (HP): 5 • Rotation (RPM): 1750 • Approximate Weight (Kg): 185 • Measurements (LxWxH): 960 x 770 x 650 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E750
Nominal Flow m³/h: 750.0 • Nominal Flow CFM: 441.4 • Nominal Flow liters/min: 12500 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Engine Power (HP): 25 • Rotation (RPM): 1100 • Approximate Weight (Kg): 685 • Measurements (LxWxH): 1780 x 880 x 750 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps • N Series Special for Packaging Machines and Vacuum Plants
Series of high vacuum pumps with a final rating of better than 99.9% and developed especially for vacuum sealers/packers and vacuum plants with different capacities.
Vacuum Pumps E08N
Nominal Flow m³/h: 10.0 • Nominal Flow CFM: 6.0 • Nominal Flow liters/min: 176 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1/4 • Rotation (RPM): 3400 • Approximate Weight (Kg): 12 • Measurements (LxWxH): 310 x 180 x 160 mm • Technical specifications may vary according to the type of engine and the accessories included in the assembly.
Vacuum Pumps E20N
Nominal Flow m³/h: 22.0 • Nominal Flow CFM: 13.0 • Nominal Flow liters/min: 370 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1/2 • Rotation (RPM): 1750 • Approximate Weight (Kg): 20 • Measurements (LxWxH): 340 x 240 x 200 mm • Technical specifications may vary according to the type of engine and the accessories included in the assembly.
Vacuum Pumps E30N
Nominal Flow m³/h: 33.0 • Nominal Flow CFM: 20.0 • Nominal Flow liters/min: 549 • Partial Pressure (torr): 2.10-1 • Total Pressure (torr): 5.10-1 • Adm Steam Pressure Water (torr): 25 • Motor Power (HP): 1 • Rotation (RPM): 1750 • Approximate Weight (Kg): 27 • Measurements (LxWxH): 380 x 260 x 220 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E40N
Nominal Flow m³/h: 48.0 • Nominal Flow CFM: 29.0 • Nominal Flow liters/min: 790 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Engine Power (HP): 2 • Rotation (RPM): 1750 • Approximate Weight (Kg): 61 • Measurements (LxWxH): 520 x 285 x 255 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
Vacuum Pumps E80N
Nominal Flow m³/h: 81.0 • Nominal Flow CFM: 49.0 • Nominal Flow liters/min: 1384 • Partial Pressure (torr): 3.10-2 • Total Pressure (torr): 1.10-1 • Adm Steam Pressure Water (torr): 40 • Motor Power (HP): 3 • Rotation (RPM): 1750 • Approximate Weight (Kg): 61 • Measurements (LxWxH): 700 x 450 x 420 mm • Technical specifications may vary depending with the type of engine and accessories included in the assembly.
