Vacuum Pumps • A Series • Double Stage

Vacuum Pumps A12

Nominal Flow m³/h: 13.5 • Nominal Flow CFM: 8.0 • Nominal Flow liters/min: 226 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate condensate from the lubricant • Standard inlet and outlet connections 1/2” NPT, configurable for NWKF 25 • Motor coupled directly to the pump • Motor Power (HP): 1/2 • Motor Power (W): 372 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 28 • Measurements (LxWxH): 540 x 180 x 280 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.

Vacuum Pumps A18

Nominal Flow m³/h: 20.3 • Nominal Flow CFM: 12.0 • Nominal Flow liters/min: 340 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate condensate from the lubricant • Standard inlet and outlet connections 1/2” NPT, configurable for NWKF 25 • Motor coupled directly to the pump • Motor Power (HP): 1/2 • Motor Power (W): 372 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 29 • Measurements (LxWxH): 540 x 180 x 280 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.

Vacuum Pumps A28

Nominal Flow m³/h: 30.5 • Nominal Flow CFM: 18.0 • Nominal Flow liters/min: 509 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate lubricant condensate • Standard inlet and outlet connections 1/2” NPT, configurable for NWKF 25 • Motor coupled directly to the pump • Motor Power (HP): 1 • Motor Power (W): 745 • Voltage: Single-phase 110 /220V or Three-Phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 38 • Measurements (LxWxH): 580 x 200 x 290 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.

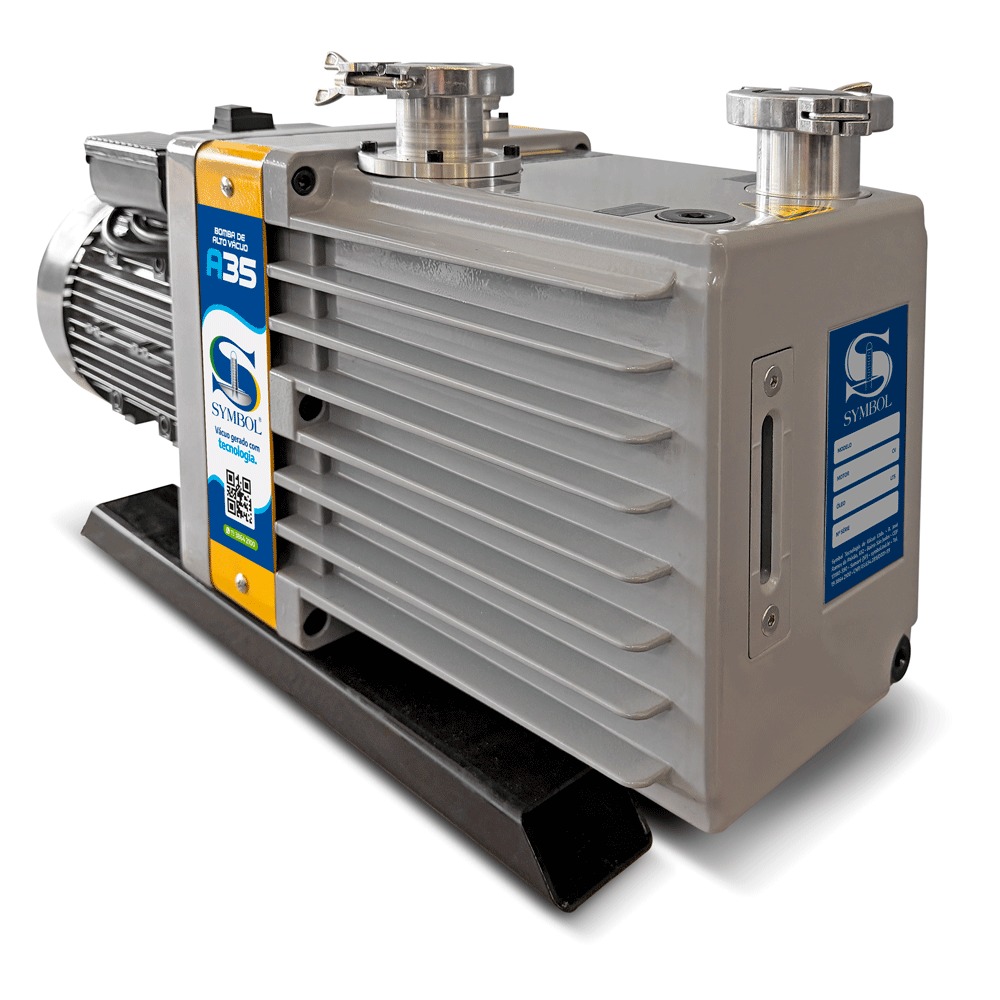

Vacuum Pumps A35

Nominal Flow m³/h: 35.0 • Nominal Flow CFM: 20,3 • Nominal Flow liters/min: 576 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate lubricant condensate • Standard inlet NWKF 40 • Motor coupled directly to the pump • Motor Power (HP): 1.5 • Motor Power (W): 1118 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 41 • Measurements (LxWxH): 640 x 200 x 290 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.

Vacuum Pumps A45

Nominal Flow m³/h: 50.9 • Nominal Flow CFM: 30.0 • Nominal Flow liters/min: 849 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate lubricant condensate • Standard inlet and outlet connections 3/4” NPT, configurable for NWKF 25 • Motor coupled directly to the pump • Motor Power (HP): 1.5 • Motor Power (W): 1118 • Voltage: Single-phase 110/220V or Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 41 • Measurements (LxWxH): 640 x 200 x 290 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.

Vacuum Pumps A65

Nominal Flow m³/h: 60.0 • Nominal Flow CFM: 35.0 • Nominal Flow liters/min: 1000 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate condensate from the lubricant • Standard input and output connections NWKF 40 • Motor coupled directly to the pump • Motor Power (HP): 3 • Motor Power (W): 2207 • Voltage: Three-phase 220/380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 39 • Measurements (LxWxH): 640 x 200 x 290 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.

Vacuum Pumps A100

Nominal Flow m³/h: 108.0 • Nominal Flow CFM: 63.5 • Nominal Flow liters/min: 1799 • Operation with Oil Sealed Rotary Vane Vacuum Pumps • Double pumping stage • Final vacuum of at least 0.003 mBar with gas outlet closed and a minimum of 0.007 mBar with the gas outlet fully open • Partial Pressure (torr): 1.10-4 • Total Pressure (torr): 5.10-3 • Water Vapor Admission Pressure (torr): 25 • Gas Ballast type valve for eliminate lubricant condensate • Standard inlet and outlet connections 3/4” NPT, configurable for NWKF 25 • Motor coupled directly to the pump • Motor Power (HP): 4 • Motor Power (W): 3000 • Voltage: Three-phase 220 /380V (optional for 440V) • Frequency: 60 Hz • Rotation (RPM): 1750 • Maximum noise of 48 dB • Approximate weight (Kg): 105 • Measurements (LxWxH): 830 x 275 x 440 mm • Technical specifications may vary according to the type of engine and accessories included in the assembly.
